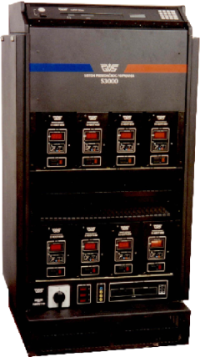

UNINTERRUPTIBLE POWER SUPPLY SYSTEM S3000 S2

Uninterruptible power supply system S3000 is designed to provide high quality power to telephone exchanges and other telecom devices, where low disturbances, low noise and short response time are mandatory. S3000 system is designed for 24 hours autonomous operation, enabling the application in remote locations without crew. May operate with or without batteries, with or without diesel generator or other auxiliary power source.

Uninterruptible power supply system S3000 S2 is manufactured for 48V, 60V, 24V and 110V output voltage versions. Covers 5 kW to 11 kW output power range.

S3000 S2 is easy to expand or modify "on-line", without system interruption or degradation of basic functions.



Features

  • Sixth generation power supply system since 1988
  • 4 output voltage options: 48 V, 60 V, 24 V, 110 V
  • Modular, upto 8 rectifier units 1400 W
  • Redundancy N+1, N+2 or N+P
  • Built-in battery overdischarge protection
  • Fulfils relevant international standards and recommendations: ITU-T, ETSI, ISO, IEC ...
  • Power factor corrected > 0,98
  • 2 battery ports
  • Low psophometric noise < 1 mV
  • Temperature compensated output voltage
  • High efficiency
  • High reliability
  • Fully "plug-in" rectifier units replacement
  • Does not require preventive maintenance
  • Mains voltage measurement option available

Applications

  • Uninterruptible power supply of telecom equipment
  • Accu-batteries maintenance
  • Uninterruptible power supply of computer and other proffesional electronic equipment
  • Replacement of old uninterruptible power supply systems

Benefits

  • Same rectifier units like other S3000 configuration - simplified maintenance
  • Extremely robust, resistant to harsh working conditions
  • 2 large LED displays + alphanumeric LCD
  • Extended input voltage range available on request
  • Natural convection cooled
  • User friendly, built in 16-keys keyboard
  • LED display on each rectifier unit

Power supply system S3000 is a modern, highly professional system, featuring exceptional electrical characteristics, simple handling and high reliability. Thanks to many adjustable and programable features, easily copes with customer special requests.

Together with other GVS products, like switching systems, test & measurement equipment and other, S3000 system offers complete, well composed solution and forms one-stop-shop for all telecom equipment for your telecom network node.

Exceptional resistance to mains voltage disturbances and high reliability make S3000 system an ideal solution for operation in harsh conditions, like rural areas. If You have a location where other power supply systems fail, S3000 is the right system for You.

Power supply system S3000 is designed for international market and is available in english, russian and serbian language versions.


Technical data

Input data

Mains voltage Vi   220/230 Vac
Mains frequency   47-63 Hz
Mains voltage range   -15 % .. +10 %
Mains distorsion   30 %
Power factor cos φ   > 0,98
Input fuse per unit   10А

Input protection

Input fuse   fast 10 А
Overvoltage protection   253 .. 265 Veff
Undervoltage protection   176 .. 187 Veff
Voltage spike protection   varistor
Fast overvoltage protection   yes

Output data

Voltage regulation   better than 1 %
Response time   1 msec
Overshoot @ Δ=50%   ±5% Vnom
Turn on / turn off overshoot   none
Voltage spikes   < 2 Vp-p
Psophometric noise   < 1 mVac
Noise 10Hz-450kHz   < 25 mV
Wideband noise   < 10 mVac/MHz
Current limit   105 %
Load fuses   2х125,8х125 Adc
Current sharing   5 %

Output protection

Output short-circuit   yes
Short-circuit start-up   yes

Batteries

Feature 48V 60V 24V 110V Unit
Total cells per battery23 / 24 28 / 29 / 3011 / 12 53 / 54 / 55 cell
Floating voltage 48.3 .. 55.258.8 .. 69 23.1 .. 27.6111.3 .. 126.5Vdc
Charging voltage 50.6 .. 57.661.6 .. 72 24.2 .. 28.8116.6 .. 132 Vdc
Overdischarge treshold 39.1 .. 45.647.6 .. 57 18.7 .. 22.890.1 .. 104.5 Vdc
High efficiency fuses 2 x 200 2 x 160 2 x 250 2 x 100 Adc

Configuration dependent

Feature 5R 6R 7R 8R UoM
Input current 7A per unit @ Vnom14 14 21 21 Aac
Output current @ 48V / current limit 125 / 130150 / 156175 / 182200 / 208Adc
Output current @ 60V / current limit 100 / 105120 / 126140 / 147160 / 168Adc
Output current @ 24V / current limit 250 / 260300 / 312350 / 364400 / 416Adc
Output current @ 110V / current limit 55 /60 66 / 72 77 / 84 88 / 96 Adc
Output power 7 8.4 9.8 11 kW
Total weight 165 175 185 195 kg

General data

Operation & maintenance   RS232, RS485
Temperature range   0 °C .. 40 °C
Storage temperature   -10 °C .. 70 °C
Relative humidity   0 .. 90 %
Noise   < 55 dB @ 1 m
Measure/display accuracy   ±1 % , ±0,5 %
Service life   40 years
Spare parts   10 years
EMC   ETSI EN 300 386

Dimensions

Height   1360 mm
Width   660 mm
Depth   620 mm

Other protections and safety

Input/output insulation   2500 Veff
Input/ground insulation   2000 Veff
Output/ground insulation   500 Veff
Insulation resistance   1000 MΩ @ 500 Vdc


Ordering codes

Product Acquire Code
Uninterruptible power supply system S3000 S2Order E05-SNNT0501-KS2▲▲-◆◆
Basic tools & accessories set for S3000 S2 Order E10-SNNT0501-KS2▲▲-◆◆
Installation material set for S3000 S2 Order E11-SNNT0501-KS2▲▲-◆◆
Basic spare parts set for S3000 S2 Order E12-SNNT0501-KS2▲▲-◆◆
User documentation for S3000 S2 Order E05-SNNT0501-DS2-◆◆
Rectifier units I1400T..B Order E08-IJTA0405-V▲▲-◆◆
Signal cable RS232, RS485 Order E03-PKSN0401
Access application Linux/Windows Download
Temperature probe with cable   50 m Order E01-TSK0401-50
Mains voltage measurement  per phase Order E01-MMN0401

▲▲ voltage

   48: 48 Vdc, 60: 60 Vdc, 24: 24 Vdc, 110: 110 Vdc

◆◆ language

   SR: serbian, RU: russian, EN: english
